DispatcherServlet 뜯어보기

 DispatcherServet은 HTTP 요청을 제일 앞에서 받아 적합한 컨트롤러로 요청을 넘겨주는 Front Controller의 역할을 한다. DispatcherServlet이 어떻게 동작하는지 보기 위해서는 그 클래스를 까보면 된다. (예전같았으면 인터넷 검색을 주로 했겠지만 스프링 자체가 실력있는 분들이 작성한 코드다보니 이런 분들이 작성한 코드를 보고 배우는 경험도 되고 직접 뜯어보는게 훨씬 기억에 잘 남아서 요즘은 공식문서를 보며 코드를 뜯어보고 있다.)

---

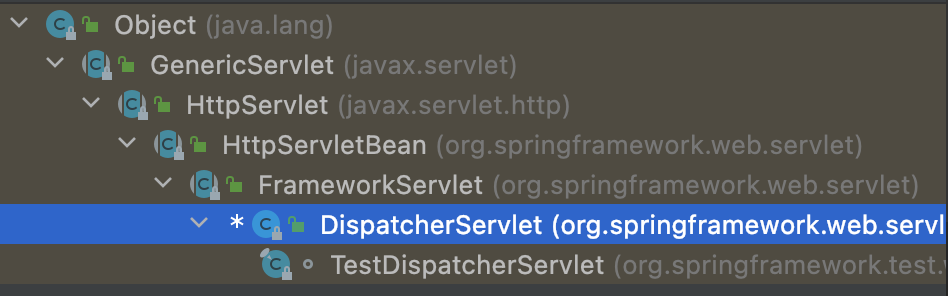

 먼저 계층구조를 뜯어보면 위와 같다. 이제부터 살펴볼 DispatcherServlet은 FrameworkServlet을 상속하고 있다. FrameworkServlet은 WebApplicationContext를 멤버변수로 가지고 있다.

public abstract class FrameworkServlet extends HttpServletBean implements ApplicationContextAware {

    // 중간 생략

    @Nullable
    private WebApplicationContext webApplicationContext;

    // 생성자
    public FrameworkServlet() {
    }

    // 생성자
    public FrameworkServlet(WebApplicationContext webApplicationContext) {
        this.webApplicationContext = webApplicationContext;
    }

    // 중간 생략

    protected abstract void doService(HttpServletRequest request, HttpServletResponse response) throws Exception;

}

 DispatcherServlet의 경우 아래와 같다. FrameworkServlet의 추상메서드인 doService를 구현하고 있다.

public class DispatcherServlet extends FrameworkServlet {

    // 중간생략

    // 생성자
    public DispatcherServlet() {
        super();
        setDispatchOptionsRequest(true);
    }

    // 생성자
    public DispatcherServlet(WebApplicationContext webApplicationContext) {
        super(webApplicationContext);
        setDispatchOptionsRequest(true);
    }

    @Override
	protected void doService(HttpServletRequest request, HttpServletResponse response) throws Exception {
		logRequest(request);

		// Keep a snapshot of the request attributes in case of an include,
		// to be able to restore the original attributes after the include.
		Map<String, Object> attributesSnapshot = null;
		if (WebUtils.isIncludeRequest(request)) {
			attributesSnapshot = new HashMap<>();
			Enumeration<?> attrNames = request.getAttributeNames();
			while (attrNames.hasMoreElements()) {
				String attrName = (String) attrNames.nextElement();
				if (this.cleanupAfterInclude || attrName.startsWith(DEFAULT_STRATEGIES_PREFIX)) {
					attributesSnapshot.put(attrName, request.getAttribute(attrName));
				}
			}
		}

		// Make framework objects available to handlers and view objects.
		request.setAttribute(WEB_APPLICATION_CONTEXT_ATTRIBUTE, getWebApplicationContext());
		request.setAttribute(LOCALE_RESOLVER_ATTRIBUTE, this.localeResolver);
		request.setAttribute(THEME_RESOLVER_ATTRIBUTE, this.themeResolver);
		request.setAttribute(THEME_SOURCE_ATTRIBUTE, getThemeSource());

		if (this.flashMapManager != null) {
			FlashMap inputFlashMap = this.flashMapManager.retrieveAndUpdate(request, response);
			if (inputFlashMap != null) {
				request.setAttribute(INPUT_FLASH_MAP_ATTRIBUTE, Collections.unmodifiableMap(inputFlashMap));
			}
			request.setAttribute(OUTPUT_FLASH_MAP_ATTRIBUTE, new FlashMap());
			request.setAttribute(FLASH_MAP_MANAGER_ATTRIBUTE, this.flashMapManager);
		}

		RequestPath previousRequestPath = null;
		if (this.parseRequestPath) {
			previousRequestPath = (RequestPath) request.getAttribute(ServletRequestPathUtils.PATH_ATTRIBUTE);
			ServletRequestPathUtils.parseAndCache(request);
		}

		try {
			doDispatch(request, response);
		}
		finally {
			if (!WebAsyncUtils.getAsyncManager(request).isConcurrentHandlingStarted()) {
				// Restore the original attribute snapshot, in case of an include.
				if (attributesSnapshot != null) {
					restoreAttributesAfterInclude(request, attributesSnapshot);
				}
			}
			if (this.parseRequestPath) {
				ServletRequestPathUtils.setParsedRequestPath(previousRequestPath, request);
			}
		}
	}

}

 위의 DispatcherServlet의 doService를 보면 결국 중요한 부분은 try문 안의 doDispatch(request, response)라는 것을 알 수 있다. 그래서 이 부분을 보면 아래와 같다.

protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {
    HttpServletRequest processedRequest = request;
    HandlerExecutionChain mappedHandler = null;
    boolean multipartRequestParsed = false;

    WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);

    try {
        ModelAndView mv = null;
        Exception dispatchException = null;

        try {

            // 주) multipart request인지 확인
            processedRequest = checkMultipart(request);
            multipartRequestParsed = (processedRequest != request);

            // 주) 핸들러 선택
            // Determine handler for the current request.
            mappedHandler = getHandler(processedRequest);
            if (mappedHandler == null) {
                noHandlerFound(processedRequest, response);
                return;
            }

            // 주) 선택된 핸들러에 맞는 핸들러 어댑터 결정
            // Determine handler adapter for the current request.
            HandlerAdapter ha = getHandlerAdapter(mappedHandler.getHandler());

            // Process last-modified header, if supported by the handler.
            String method = request.getMethod();
            boolean isGet = HttpMethod.GET.matches(method);
            if (isGet || HttpMethod.HEAD.matches(method)) {
                long lastModified = ha.getLastModified(request, mappedHandler.getHandler());
                if (new ServletWebRequest(request, response).checkNotModified(lastModified) && isGet) {
                    return;
                }
            }

            if (!mappedHandler.applyPreHandle(processedRequest, response)) {
                return;
            }

            // 실제 핸들러 호출
            // 이때, request, response, handler를 넘긴다.
            // Actually invoke the handler.
            mv = ha.handle(processedRequest, response, mappedHandler.getHandler());

            if (asyncManager.isConcurrentHandlingStarted()) {
                return;
            }

            applyDefaultViewName(processedRequest, mv);
            mappedHandler.applyPostHandle(processedRequest, response, mv);
            }
            catch (Exception ex) {
                dispatchException = ex;
            }
            catch (Throwable err) {
                // As of 4.3, we're processing Errors thrown from handler methods as well,
                // making them available for @ExceptionHandler methods and other scenarios.
                dispatchException = new NestedServletException("Handler dispatch failed", err);
            }
            processDispatchResult(processedRequest, response, mappedHandler, mv, dispatchException);
        }
        catch (Exception ex) {
            triggerAfterCompletion(processedRequest, response, mappedHandler, ex);
        }
        catch (Throwable err) {
            triggerAfterCompletion(processedRequest, response, mappedHandler,
                new NestedServletException("Handler processing failed", err));
        }
        finally {
            if (asyncManager.isConcurrentHandlingStarted()) {
                // Instead of postHandle and afterCompletion
                if (mappedHandler != null) {
                    mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);
                }
            }
            else {
                // Clean up any resources used by a multipart request.
                if (multipartRequestParsed) {
                    cleanupMultipart(processedRequest);
                }
            }
        }
    }

  위 코드에서 ha.handle(processedRequest, response, mappedHandler.getHandler());를 수행하고 결과적으로 processDispatchResult()를 수행하는데, 이 메서드에서 뷰를 렌더링한다.

private void processDispatchResult(HttpServletRequest request, HttpServletResponse response,
        @Nullable HandlerExecutionChain mappedHandler, @Nullable ModelAndView mv,
        @Nullable Exception exception) throws Exception {

    boolean errorView = false;

    if (exception != null) {
        if (exception instanceof ModelAndViewDefiningException) {
            logger.debug("ModelAndViewDefiningException encountered", exception);
            mv = ((ModelAndViewDefiningException) exception).getModelAndView();
        }
        else {
            Object handler = (mappedHandler != null ? mappedHandler.getHandler() : null);
            mv = processHandlerException(request, response, handler, exception);
            errorView = (mv != null);
        }
    }

    // Did the handler return a view to render?
    if (mv != null && !mv.wasCleared()) {
        // 주) 뷰 렌더링
        render(mv, request, response);
        if (errorView) {
            WebUtils.clearErrorRequestAttributes(request);
        }
    }
    else {
        if (logger.isTraceEnabled()) {
            logger.trace("No view rendering, null ModelAndView returned.");
        }
    }

    if (WebAsyncUtils.getAsyncManager(request).isConcurrentHandlingStarted()) {
        // Concurrent handling started during a forward
        return;
    }

    if (mappedHandler != null) {
        // Exception (if any) is already handled..
        mappedHandler.triggerAfterCompletion(request, response, null);
    }
}

 doDispatch() 코드에서는 실제 핸들러를 호출하는 부분을 중요하게 보아야 한다. HandlerAdapter의 handle 메서드가 중요부분인데, 이 부분을 뜯어보면 아래와 같다.

public interface HandlerAdapter {

    /**
     * Given a handler instance, return whether or not this {@code HandlerAdapter}
     * can support it. Typical HandlerAdapters will base the decision on the handler
     * type. HandlerAdapters will usually only support one handler type each.
     * <p>A typical implementation:
     * <p>{@code
     * return (handler instanceof MyHandler);
     * }
     * @param handler the handler object to check
     * @return whether or not this object can use the given handler
     */
    boolean supports(Object handler);

    /**
     * Use the given handler to handle this request.
     * The workflow that is required may vary widely.
     * @param request current HTTP request
     * @param response current HTTP response
     * @param handler the handler to use. This object must have previously been passed
     * to the {@code supports} method of this interface, which must have
     * returned {@code true}.
     * @throws Exception in case of errors
     * @return a ModelAndView object with the name of the view and the required
     * model data, or {@code null} if the request has been handled directly
     */
    @Nullable
    ModelAndView handle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception;

    /**
     * Same contract as for HttpServlet's {@code getLastModified} method.
     * Can simply return -1 if there's no support in the handler class.
     * @param request current HTTP request
     * @param handler the handler to use
     * @return the lastModified value for the given handler
     * @see javax.servlet.http.HttpServlet#getLastModified
     * @see org.springframework.web.servlet.mvc.LastModified#getLastModified
     */
    long getLastModified(HttpServletRequest request, Object handler);

}

HandlerAdapter의 handle() 메소드는 ModelAndView를 반환하게 되어 있다.

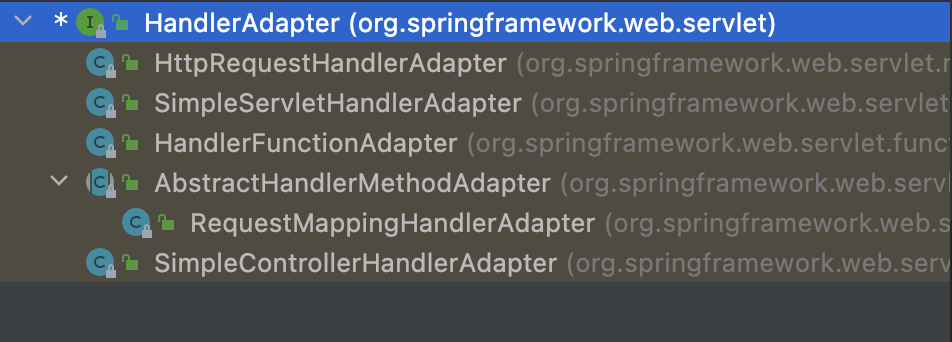

 HandlerAdapter의 계층구조를 보면 위와 같다. 이 중 우리가 자주 사용하는 @RequestMapping 어노테이션을 지원하는 RequestMappingHandlerAdapter를 뜯어보기 위해서는 먼저 RequestMapiingHandlerAdapter가 상속하고 있는 AbstractHandlerMethodAdapter를 뜯어봐야 한다.

public abstract class AbstractHandlerMethodAdapter extends WebContentGenerator implements HandlerAdapter, Ordered {

    @Override
    @Nullable
    public final ModelAndView handle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
        return handleInternal(request, response, (HandlerMethod) handler);
    }

    @Nullable
    protected abstract ModelAndView handleInternal(HttpServletRequest request, HttpServletResponse response, HandlerMethod handlerMethod) throws Exception;

}

  결국 요청이 DispatcherServlet에서 doService() -> doDispatch() -> 핸들러어댑터의 handle()로 흘러감을 알 수 있다. 그리고 handle()은 AbstractHandlerMethodAdapter에서 handleInternal()로 흘러간다. 그렇다면 RequestMappingHandlerAdapter는 doDispatch()에서 부모인 AbstractHandlerMethodAdapter의 handle()을 거쳐 본인이 구현한 handleInternal()을 수행하게 된다. RequestMappingHandlerAdapter의 handleInternal()은 아래와 같다.

@Override
protected ModelAndView handleInternal(HttpServletRequest request, HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {

    ModelAndView mav;
    checkRequest(request);

    // Execute invokeHandlerMethod in synchronized block if required.
    if (this.synchronizeOnSession) {
        HttpSession session = request.getSession(false);
        if (session != null) {
            Object mutex = WebUtils.getSessionMutex(session);
            synchronized (mutex) {
                mav = invokeHandlerMethod(request, response, handlerMethod);
            }
        }
        else {
            // No HttpSession available -> no mutex necessary
            mav = invokeHandlerMethod(request, response, handlerMethod);
        }
    }
    else {
        // No synchronization on session demanded at all...
        mav = invokeHandlerMethod(request, response, handlerMethod);
    }

    if (!response.containsHeader(HEADER_CACHE_CONTROL)) {
        if (getSessionAttributesHandler(handlerMethod).hasSessionAttributes()) {
            applyCacheSeconds(response, this.cacheSecondsForSessionAttributeHandlers);
        }
        else {
            prepareResponse(response);
        }
    }

    return mav;
}

 여기에서 또 invokeHandlerMethod()로 넘어간다.

@Nullable
protected ModelAndView invokeHandlerMethod(HttpServletRequest request, HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {

    ServletWebRequest webRequest = new ServletWebRequest(request, response);
    try {
        WebDataBinderFactory binderFactory = getDataBinderFactory(handlerMethod);
        ModelFactory modelFactory = getModelFactory(handlerMethod, binderFactory);

        ServletInvocableHandlerMethod invocableMethod = createInvocableHandlerMethod(handlerMethod);
        if (this.argumentResolvers != null) {
            invocableMethod.setHandlerMethodArgumentResolvers(this.argumentResolvers);
        }
        if (this.returnValueHandlers != null) {
            invocableMethod.setHandlerMethodReturnValueHandlers(this.returnValueHandlers);
        }
        invocableMethod.setDataBinderFactory(binderFactory);
        invocableMethod.setParameterNameDiscoverer(this.parameterNameDiscoverer);

        ModelAndViewContainer mavContainer = new ModelAndViewContainer();
        mavContainer.addAllAttributes(RequestContextUtils.getInputFlashMap(request));
        modelFactory.initModel(webRequest, mavContainer, invocableMethod);
        mavContainer.setIgnoreDefaultModelOnRedirect(this.ignoreDefaultModelOnRedirect);

        AsyncWebRequest asyncWebRequest = WebAsyncUtils.createAsyncWebRequest(request, response);
        asyncWebRequest.setTimeout(this.asyncRequestTimeout);

        WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);
        asyncManager.setTaskExecutor(this.taskExecutor);
        asyncManager.setAsyncWebRequest(asyncWebRequest);
        asyncManager.registerCallableInterceptors(this.callableInterceptors);
        asyncManager.registerDeferredResultInterceptors(this.deferredResultInterceptors);

        if (asyncManager.hasConcurrentResult()) {
            Object result = asyncManager.getConcurrentResult();
            mavContainer = (ModelAndViewContainer) asyncManager.getConcurrentResultContext()[0];
            asyncManager.clearConcurrentResult();
            LogFormatUtils.traceDebug(logger, traceOn -> {
                String formatted = LogFormatUtils.formatValue(result, !traceOn);
                return "Resume with async result [" + formatted + "]";
            });
            invocableMethod = invocableMethod.wrapConcurrentResult(result);
        }

        invocableMethod.invokeAndHandle(webRequest, mavContainer);
        if (asyncManager.isConcurrentHandlingStarted()) {
            return null;
        }

        return getModelAndView(mavContainer, modelFactory, webRequest);
    }
    finally {
        webRequest.requestCompleted();
    }
}

여기에서 또 ServletInvocableHandlerMethod의 invokeAndHandle()을 수행한다.

public void invokeAndHandle(ServletWebRequest webRequest, ModelAndViewContainer mavContainer, Object... providedArgs) throws Exception {

    Object returnValue = invokeForRequest(webRequest, mavContainer, providedArgs);
    setResponseStatus(webRequest);

    if (returnValue == null) {
        if (isRequestNotModified(webRequest) || getResponseStatus() != null || mavContainer.isRequestHandled()) {
            disableContentCachingIfNecessary(webRequest);
            mavContainer.setRequestHandled(true);
            return;
        }
    }
    else if (StringUtils.hasText(getResponseStatusReason())) {
        mavContainer.setRequestHandled(true);
        return;
    }

    mavContainer.setRequestHandled(false);
    Assert.state(this.returnValueHandlers != null, "No return value handlers");
    try {
        this.returnValueHandlers.handleReturnValue(returnValue, getReturnValueType(returnValue), mavContainer, webRequest);
    }
    catch (Exception ex) {
        if (logger.isTraceEnabled()) {
            logger.trace(formatErrorForReturnValue(returnValue), ex);
        }
        throw ex;
    }
}

 여기에서 returnValue를 반환하는 InvocableHandlerMethod의 invokeForRequest() 내부로 들어가보자.

@Nullable
public Object invokeForRequest(NativeWebRequest request, @Nullable ModelAndViewContainer mavContainer,
        Object... providedArgs) throws Exception {

    Object[] args = getMethodArgumentValues(request, mavContainer, providedArgs);
    if (logger.isTraceEnabled()) {
        logger.trace("Arguments: " + Arrays.toString(args));
    }
    return doInvoke(args);
}

여기에서 결과적으로 doInvoke()를 수행함을 알 수 있다.

@Nullable
protected Object doInvoke(Object... args) throws Exception {
    Method method = getBridgedMethod();
    ReflectionUtils.makeAccessible(method);
    try {
        if (KotlinDetector.isSuspendingFunction(method)) {
            return CoroutinesUtils.invokeSuspendingFunction(method, getBean(), args);
        }
        return method.invoke(getBean(), args);
    }
    catch (IllegalArgumentException ex) {
        assertTargetBean(method, getBean(), args);
        String text = (ex.getMessage() != null ? ex.getMessage() : "Illegal argument");
        throw new IllegalStateException(formatInvokeError(text, args), ex);
    }
    catch (InvocationTargetException ex) {
        // Unwrap for HandlerExceptionResolvers ...
        Throwable targetException = ex.getTargetException();
        if (targetException instanceof RuntimeException) {
            throw (RuntimeException) targetException;
        }
        else if (targetException instanceof Error) {
            throw (Error) targetException;
        }
        else if (targetException instanceof Exception) {
            throw (Exception) targetException;
        }
        else {
            throw new IllegalStateException(formatInvokeError("Invocation failure", args), targetException);
        }
    }
}

 위에서 중요한 부분은 return method.invoke(getBean(), args);이다.

Method의 invoke() 메소드는 첫번째 파라미터로 메소드를 호출할 객체를, 두번째 파라미터로 메소드 호출시 전달할 파라미터를 받는다. 그 말인즉, BeanFactory에서 Bean을 찾아 메서드를 수행한다는 것이다.

DispatcherServlet에서 깊고 복잡하게 들어왔는데, 결국 요점은 요청이 DispatcherServlet을 통해 들어오고 BeanFactory에서 빈을 찾아 그 메서드를 수행한다는 것이다. 메서드를 수행하고나면 위 과정을 거꾸로 거슬러 가서 결국 ModelAndView를 반환하게 된다.
